Single Phase Home Storage Solution (LV)

Download PDF >

 Contact US >

Single Phase Home Storage Solution (LV)
Description

Afore ASL Series is an all-in-one solar and storage solution that integrates the inverter, battery charger, UPS-level switching, and battery enclosure into a pre- wired modular system for easier and faster installation. The compact, elegantly designed, and robust unit is IP66 rated, so it can be mounted either inside or outside withstanding all weather conditions and brings a reduction of installation time of up to 50%.

IP66 Outdoor Design

Modular Design Plug & Play

AFCI Standard

Scalable Design Up To 30.72kWh

Product introduction

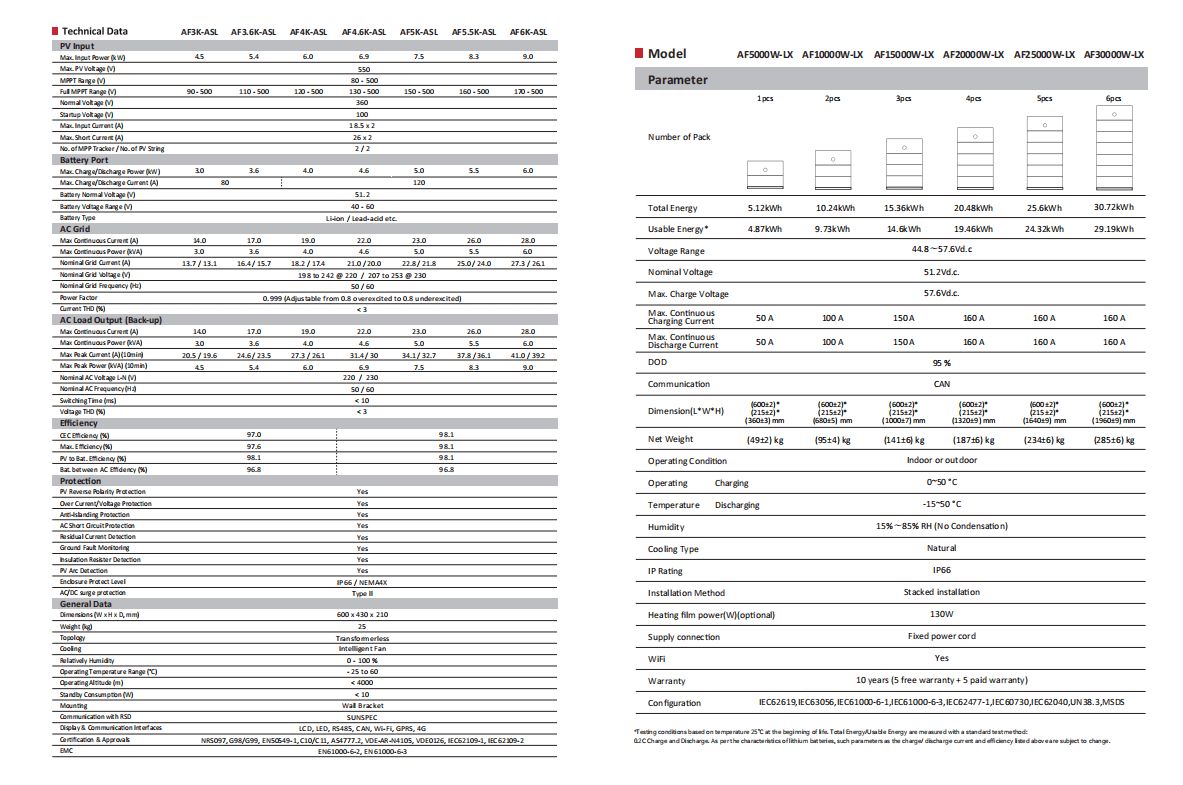

Technical DataAF3K-ASLAF3.6K-ASLAF4K-ASLAF4.6K-ASLAF5K-ASLAF5.5K-ASLAF6K-ASL
PV Input
Max.Input Power(kW)4.55.46.06.97.58.39.0
Max PV Voltage (V)550550550550550550550
MPPT Range (V)80-50080-50080-50080-50080-50080-50080-500
Ful MPPT Range (V)90-500110-500120-500130-500150-500160-500170-500
l Normal Voltage (V)360360360360360360360
Startup Voltage (V)100100100100100100100
Max. Input Current (A)18.5x218.5x218.5x218.5x218.5x218.5x218.5x2
Max. Short Current (A)26x226x226x226x226x226x226x2
No. of MPP Tracker / No. of PV String2/22/22/22/22/22/22/2
Battery Port
Max. Charge/Discharge Power (KW)3.03.64.04.65.05.56.0
Max. Charge/Discharge Current (A)8080120120120120120
Battery Normal Voltage (V)51.251.251.251.251.251.251.2
Battery Voltage Range (V)40-6040-6040-6040-6040-6040-6040-60
Battery TypeLi-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.
AC Grid
Max Continuous Current (A)14.017.09.022.023.026.028.0
Max Continuous Power (kVA)3.03.64.04.65.05.56.0
Nominal Grid Current (A)13.7/13.116.4/15.718.2/17.421.0/20.022.8/21.825.0/24.027.3/26.1
Nominal Grid Voltage (V)198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230198 to 242 @ 220/ 207 to 253@230
Nominal Grid Frequency (Hz)50/6050/6050/6050/6050/6050/6050/60
Power Factor0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)
Current THD (%)<3<3<3<3<3<3<3
AC Load Output (Back-up)
Max Continuous Current (A)14.017.019.022.023.026.028.0
Max Continuous Power (kVA)3.03.64.04.65.05.56.0
Max Peak Current (A) (10min)20.5/19.624.6/23.527.3/26.131.4/3034.1/32.737.8/36.141.0/39.2
Max Peak Power (kVA) (10min)4.55.46.06.97.58.39.0
Nominal AC Voltage L-N (V)220/230220/230220/230220/230220/230220/230220/230
Nominal AC Frequency (Hz)50/6050/6050/6050/6050/6050/6050/60
Switching Time (ms)<10<10<10<10<10<10<10
Voltage THD (%)<3<3<3<3<3<3<3
Efficiency
CEC Efficiency(%)97.097.097.098.198.198.198.1
Max. Efficiency (%)97.697.697.698.198.198.198.1
PV to Bat. Efficiency(%)98.198.198.198.198.198.198.1
Bat.between AC Efficiency(%)96.896.896.896.896.896.896.8
Protection
PV Reverse Polarity ProtectionYesYesYesYesYesYesYes
Over Current/Voltage ProtectionYesYesYesYesYesYesYes
Anti-Islanding ProtectionYesYesYesYesYesYesYes
AC Short Circuit ProtectionYesYesYesYesYesYesYes
Residual Current DetectionYesYesYesYesYesYesYes
Ground Fault MonitoringYesYesYesYesYesYesYes
Insulation Resister DetectionYesYesYesYesYesYesYes
PV Arc DetectionYesYesYesYesYesYesYes
Enclosure Protect LevelIP66/ NEMA4XIP66/ NEMA4XIP66/ NEMA4XIP66/ NEMA4XIP66/ NEMA4XIP66/ NEMA4XIP66/ NEMA4X
AC/DC surge protectionType lIType lIType lIType lIType lIType lIType lI
General Data
Dimensions (WxHx D,mm)600x430x210600x430x210600x430x210600x430x210600x430x210600x430x210600x430x210
Weight (kg)25252525252525
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
CoolingIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent Fan
Relatively Humidity0-100%0-100%0-100%0-100%0-100%0-100%0-100%
Operating Temperature Range(℃)- 25 to 60- 25 to 60- 25 to 60- 25 to 60- 25 to 60- 25 to 60- 25 to 60
Operating Altitude (m)<4000<4000<4000<4000<4000<4000<4000
Standby Consumption (W)<10<10<10<10<10<10<10
MountingWall BracketWall BracketWall BracketWall BracketWall BracketWall BracketWall Bracket
Communication with RSDSUNSPECSUNSPECSUNSPECSUNSPECSUNSPECSUNSPECSUNSPEC
Display & Communication InterfacesLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
Certification & ApprovalsNRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2
EMCEN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3
ModelAF5000W-LH
Parameter
Nominal Voltage(Vdc)51.2
Nominal Capacity(Wh)5120
Working Voltage Range(Vdc)44.8-56.16
Charge Voltage(Vdc)58.4
Nominal Charge/Discharge Current(A)50
Max.Charge/Discharge Current(A)100
Peak Current(A)200@3sec
Parallel Connection≤6 pcs
Cycle Life6000 @80% DOD, 25℃/0.5C
Structure
Dimension(mm)600*210*300
Weight(kg)50.5
IP RatingIP65
InstallationStacked
Working Environment
Charge Working Temperature(℃)0-55
Discharge Working Temperature(℃)-20~60
Altitude(M)<2500
Humidity(RH)5-95%(w/o condensing)
Communication
CommunicationPortRS485, CAN
DisplaySOC status indicator, LED indicator
Certification
CB, IEC62619; CE-EMC, CE-GPSD, UKCA; UN38.3, MSDS
