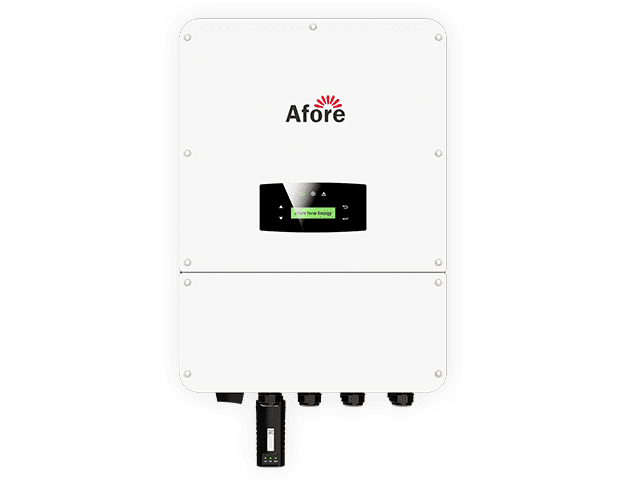

Trójfazowy falownik hybrydowy serii Plus

AF3-12K-THP

Download PDF >

 Contact US >

Trójfazowy falownik hybrydowy serii Plus
Opis

The Afore three phase storage inverters plus series are designed to increase energy independence for homeowners and commercial users. The power range is from 3.0kW to 12kW, compatible with high voltage (80-600V) batteries.

Support for Time-of-use Optimization

AFCI (Optional) & Rapid Shutdown Ready

Build in Anti-feed-in Function

100% unbalanced output

Product introduction

Technical DataAF3K-THPAF4K-THPAF5K-THPAF6K-THPAF8K-THPAF10K-THP AF12K-THP
PV Input
Max.DC Input Power (kW)567.59121518
Max. PV Voltage (V)1000100010001000100010001000
Rated DC Input Voltage (V)620620620620620620620
DC Input Voltage Range (V)150-1000150-1000150-1000150-1000150-1000150-1000150-1000
MPPT Voltage Range (V)150-850150-850150-850150-850150-850150-850150-850
Full MPPT Range(V)200-850200-850200-850250-850300-850500-850500-850
Start-up Voltage (V)160160160160160160160
Max. DC Input Current (A)20x220x220x220x220x220x220x2
Max.Short Current(A)30x230x230x230x230x230x230x2
No. of MPPT Tracker / Strings2/22/22/22/22/22/22/2
Battery Port
Battery Nominal Voltage (V)100100100150200250300
Battery Voltage Range (V)80-60080-60080-60080-60080-600120-650120-650
Max. Charge/Discharge Current (A)50505050505050
Max.Charge/Discharge Power(kW)345681012
Charging Curve3 Stages3 Stages3 Stages3 Stages3 Stages3 Stages3 Stages
Compatible Battery TypeLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride batteryLi-ion/Lead-acid /Sodium metal chloride battery
AC Grid
Nominal AC Output Power (kW)345681012
Max.AC Input/Output Power (kVA)4.5/3.36/4.47.5/5.59/6.612/8.815/11 18/13.2
Max. AC Output Current (A)5.378.510.513.51721.5
Nominal AC Voltage (V)230/400230/400230/400230/400230/400230/400230/400
Nominal AC Frenquency (Hz)50/6050/6050/6050/6050/6050/6050/60
Power Factor1(-0.8-0.8)1(-0.8-0.8)1(-0.8-0.8)1(-0.8-0.8)1(-0.8-0.8)1(-0.8-0.8)1(-0.8-0.8)
Current THD (%)<3%<3%<3%<3%<3%<3%<3%
AC Load Output (Back-up)
Nominal Output Power (VA)300040005000600080001000012000
Nominal Output Voltage(V)230/400230/400230/400230/400230/400230/400230/400
Nominal Output Frequency (Hz)50/6050/6050/6050/6050/6050/6050/60
Nominal Output Current (A)4.45.87.38.711.614.517.4
Peak Output Power3300VA, 60s4400VA, 60s5500VA, 60s6600VA, 60s8800VA, 60s11000VA, 60s 13200VA,60s
THDV (with linear load)<3%<3%<3%<3%<3%<3%<3%
Switching Time (ms)<10<10<10<10<10<10<10
Efficiency
Europe Efficiency97.50%97.50%97.50%97.50%97.50%97.50%97.50%
Max. Efficiency98.00%98.00%98.00%98.00%98.20%98.20%98.30%
Battery Charge/Discharge Efficiency98.00%98.00%98.00%98.00%98.00%98.00%98.00%
Protection
Reverse Polarity ProtectionYesYesYesYesYesYesYes
Over Current / Voltage ProtectionYesYesYesYesYesYesYes
Anti-islanding ProtectionYesYesYesYesYesYesYes
AC Short-ciruit ProtectionYesYesYesYesYesYesYes
Leakage Current DetectionYesYesYesYesYesYesYes
Ground Fault MonitoringYesYesYesYesYesYesYes
Grid MonitoringYesYesYesYesYesYesYes
Enclosure Protect LevelP65P65P65P65P65P65P65
AC/DC surge protectionType llType llType llType llType llType llType ll
General Data
Dimensions (WxHx Dmm)558x535x260mm558x535x260mm558x535x260mm558x535x260mm558x535x260mm558x535x260mm558x535x260mm
, Weight (kg)29kg29kg29kg29kg29kg29kg29kg
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
Cooling ConceptIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent Fan
Relative Humidity0-100%0-100%0-100%0-100%0-100%0-100%0-100%
Operating Temperature Range(℃)-25 to 60 °C-25 to 60℃-25 to 60℃-25 to 60℃-25 to 60℃-25 to 60℃-25 to 60℃
Operating Altitude (m)<4000<4000<4000<4000<4000<4000<4000
Standby Consumption (W)<5<5<5<5<5<5<5
Display & Communication InterfacesLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4G
Certification & ApprovalsNRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097,G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2
EMCEN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3
