Opis
Seria niskonapięciowych falowników magazynujących Afore AF plus została zaprojektowana w celu zwiększenia niezależności energetycznej właścicieli domów. Zakres mocy wynosi od 4 kW do 6 kW i jest kompatybilny z akumulatorami niskonapięciowymi (40-60 V).
Zarządzanie energią opiera się na strukturach opłat za czas użytkowania i popytu, które znacznie zmniejszają ilość energii kupowanej z sieci publicznej.

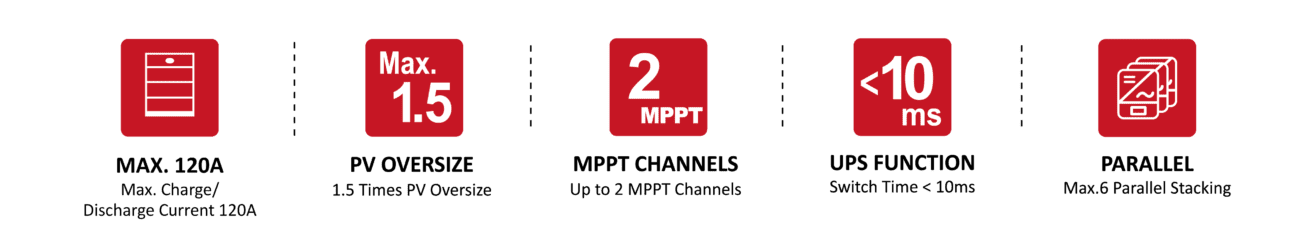

Dzięki funkcji UPS (czas przełączania < 10 ms), która umożliwia zasilanie kluczowych odbiorników podczas awarii. Dodatkowo, w trybie pracy awaryjnej, falownik zapewnia do 150% szczytowego przeciążenia wyjścia.
Falowniki niskonapięciowe serii AF są zintegrowane z wyłącznikiem różnicowoprądowym (AFCI) i funkcją szybkiego wyłączania.
Przerywacz obwodu łuku elektrycznego (AFCI) (opcja)
Moc ładowania i rozładowywania jest większa
Inteligentne monitorowanie i zdalna aktualizacja oprogramowania sprzętowego
W trybie off-grid maksymalne obciążenie może wynosić
Wprowadzenie produktu
| Technical Data | AF4K-SLP | AF4.6K-SLP | AF5K-SLP | AF5.5K-SLP | AF6K-SLP |
|---|---|---|---|---|---|
| PV Input | |||||
| Max.Input Power (kW) | 6 | 6.9 | 7.5 | 8.3 | 9 |
| Max. PV Voltage (V) | 550 | 550 | 550 | 550 | 550 |
| MPPT Range (V) | 80-500 | 80-500 | 80-500 | 80-500 | 80-500 |
| Full MPPT Range (V) | 120-500 | 130-500 | 150-500 | 160-500 | 170-500 |
| Normal Voltage (V) | 360 | 360 | 360 | 360 | 360 |
| Startup Voltage (V) | 100 | 100 | 100 | 100 | 100 |
| Max. Input Current (A) | 18.5x2 | 18.5x2 | 18.5x2 | 18.5x2 | 18.5x2 |
| Max.Short Current (A) | 26x2 | 26x2 | 26x2 | 26x2 | 26x2 |
| No.of MPP Tracker / No. of PV String | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
| Battery Port | |||||
| Max.Charge/Discharge Power (kW) | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 |
| Max.Charge/Discharge Current (A) | 120 | 120 | 120 | 120 | 120 |
| Battery Normal Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Battery Voltage Range (V) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Battery Type | Li-ion / Lead-acid etc. | Li-ion / Lead-acid etc. | Li-ion / Lead-acid etc. | Li-ion / Lead-acid etc. | Li-ion / Lead-acid etc. |
| AC Grid | |||||
| Max Continuous Current (A) | 19.0 | 22.0 | 23.0 | 26.0 | 28.0 |
| Max Continuous Power (kVA) | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 |
| Nominal Grid Current (A) | 18.2/17.4 | 21.0/20.0 | 22.8/21.8 | 25.0/24.0 | 27.3/26.1 |
| Nominal Grid Voltage (V) | 198 to 242 @220/ 207 to 253@ 230 | 198 to 242 @220/ 207 to 253@ 230 | 198 to 242 @220/ 207 to 253@ 230 | 198 to 242 @220/ 207 to 253@ 230 | 198 to 242 @220/ 207 to 253@ 230 |
| Nominal Grid Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Power Factor | 0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited) | 0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited) | 0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited) | 0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited) | 0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited) |
| Current THD (%) | <3 | <3 | <3 | <3 | <3 |
| AC Load Output | |||||
| Max Continuous Current (A) | 19.0 | 22.0 | 23.0 | 26.0 | 28.0 |
| Max Continuous Power (kVA) | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 |
| Max Peak Current (A) (10min) | 27.3/2 | 6.1 31.4/30 | 34.1/32.7 | 37.8/36.1 | 41.0/39.2 |
| Max Peak Power (kVA) (10min) | 6.0 | 6.9 | 7.5 | 8.3 | 9.0 |
| Nominal AC Voltage L-N (V) | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 |
| Nominal AC Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Switching Time (ms) | Seamless | Seamless | Seamless | Seamless | Seamless |
| Voltage THD (%) | <3 | <3 | <3 | <3 | <3 |
| Efficiency | |||||
| CEC Efficiency (%) | 97.0 | 97.0 | 97.0 | 97.0 | 97.0 |
| Max. Efficiency (%) | 97.6 | 97.6 | 97.6 | 97.6 | 97.6 |
| PV to Bat. Efficiency (%) | 98.1 | 98.1 | 98.1 | 98.1 | 98.1 |
| Bat. between AC Efficiency (%) | 96.8 | 96.8 | 96.8 | 96.8 | 96.8 |
| Protection | |||||
| PV Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes |
| Over Current/Voltage Protection | Yes | Yes | Yes | Yes | Yes |
| Anti-Islanding Protection | Yes | Yes | Yes | Yes | Yes |
| AC Short Ciruit Protection | Yes | Yes | Yes | Yes | Yes |
| Residual Current Detection | Yes | Yes | Yes | Yes | Yes |
| Ground Fault Monitoring | Yes | Yes | Yes | Yes | Yes |
| Insulation Resister Detection | Yes | Yes | Yes | Yes | Yes |
| PV ArcDetection | Yes | Yes | Yes | Yes | Yes |
| Enclosure Protect Level | IP65 / NEMA4X | IP65 / NEMA4X | IP65 / NEMA4X | IP65 / NEMA4X | IP65 / NEMA4X |
| AC/DC surge protection | Type II | Type II | Type II | Type II | Type II |
| General Data | |||||
| Dimensions (WxHxD,mm) | 370x535x192 | 370x535x192 | 370x535x192 | 370x535x192 | 370x535x192 |
| Weight(kg) | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Cooling | Intelligent Fan | Intelligent Fan | Intelligent Fan | Intelligent Fan | Intelligent Fan |
| Relative Humidity | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
| Operating Temperature Range (℃) | -25 to 60 | -25 to 60 | -25 to 60 | -25 to 60 | -25 to 60 |
| Operating Altitude (m) | <4000 | <4000 | <4000 | <4000 | <4000 |
| Standby Consumption (W) | <10 | <10 | <10 | <10 | <10 |
| Mounting | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket |
| Communication with RSD | SUNSPEC | SUNSPEC | SUNSPEC | SUNSPEC | SUNSPEC |
| Display & Communication Interfaces | LCD LED, RS485 CAN Wi-Fi GPRS 4G | LCD LED, RS485 CAN Wi-Fi GPRS 4G | LCD LED, RS485 CAN Wi-Fi GPRS 4G | LCD LED, RS485 CAN Wi-Fi GPRS 4G | LCD LED, RS485 CAN Wi-Fi GPRS 4G |
| Certification & Approvals | NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2 | NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2 | NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2 | NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2 | NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2 |
| EMC | EN61000-6-2 EN61000-6-3 | EN61000-6-2 EN61000-6-3 | EN61000-6-2 EN61000-6-3 | EN61000-6-2 EN61000-6-3 | EN61000-6-2 EN61000-6-3 |
