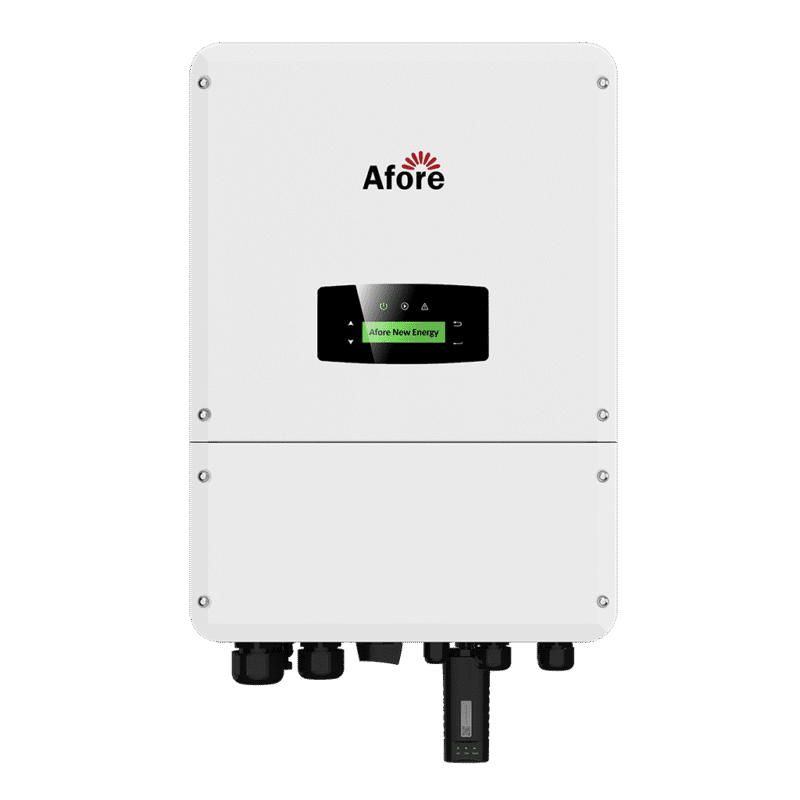

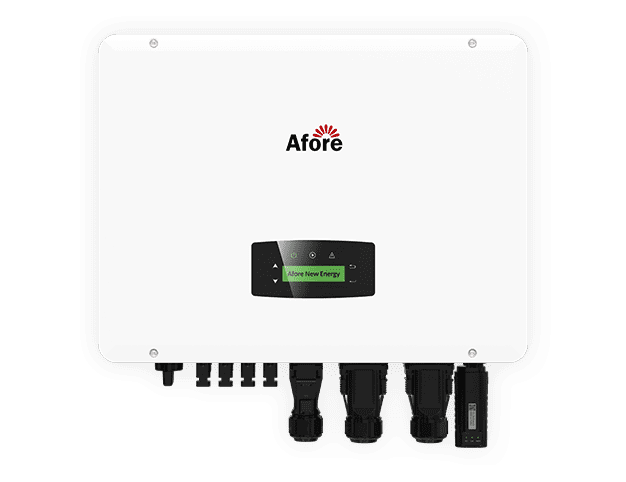

Jednofazowy falownik hybrydowy 1-3,6 kW

AF1-3.6K-SL-1 & AF3-3.6K-SL

Download PDF >

 Contact US >

Jednofazowy falownik hybrydowy 1-3,6 kW
Opis

The Afore AF low voltage Series storage Inverters are designed to increase energy independence for homeowners. The power range is from 1kW to 6kW, compatible with low voltage (40-60V) batteries.

Support for Time-of-use Optimization

Arc Fault Circuit Interrupter (AFCI) (Optional)

Build in Anti-feed-in Function

Smart Monitoring & Remote Firmware Upgrade

Product introduction

Technical DataAF1K-SL-1 AF1.5K-SL-1AF2K-SL-1AF2.5K-SL-1 AF3K-SL-1 AF3.6K-SL-1 AF3K-SL AF3.6K-SL
PV Input
Max.Input Power(kW)1.52.33.03.84.55.44.55.4
Max. PV Voltage (V)550550550550550550550550
MPPT Range (V)80-50080-50080-50080-50080-50080-50080-50080-500
Ful MPPT Range (V)80-500 90-500120-500150-500170-500210-50090-500110-500
l Normal Voltage (V)360360360360360360360360
Startup Voltage (V)100100100100100100100100
Max. Input Current (A)18.5x118.5x118.5x118.5x118.5x118.5x118.5x218.5x2
MaxShort Current (A)26x126x126x126x126x126x126x226x2
. No. of MPP Tracker/No.of PV String1/11/11/11/11/11/12/22/2
Battery Port
Max.Charge/Discharge Power(kW)11.52.02.53.03.63.03.6
Max. Charge/Discharge Current (A)2540506380808080
Battery Normal Voltage (V)51.251.251.251.251.251.251.251.2
Battery Voltage Range (V)40-6040-6040-6040-6040-6040-6040-6040-60
Battery TypeLi-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.Li-ion/Lead-acid etc.
AC Grid
Max Continuous Current (A)57101214.017.014.017.0
Max Continuous Power (kVA)11.522.53.03.63.03.6
Nominal Grid Current(A)4.6/4.4 6.9/6.69.1/8.711.4/10.913.7/13.116.4/15.713.7/13.116.4/15.7
Nominal Grid Voltage (V)198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230198 to 242 @ 220 / 207 to 253@230
Nominal Grid Frequency(Hz)50/6050/6050/6050/6050/6050/6050/6050/60
Power Factor0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)
Current THD (%)<3<3<3<3<3<3<3<3
AC Load Output
Max Continuous Current (A)571012.014.017.014.017.0
Max Continuous Power (kVA)11.522.53.03.63.03.6
Max Peak Current (A) (10min)6.9/6.6 10.5/10.013.7/13.117.3/16.620.5/19.624.6/23.520.5/19.624.6/23.5
Max Peak Power (kVA)(10min)1.52.333.84.55.44.55.4
Nominal AC Voltage L-N (V)220/230220/230220/230220/230220/230220/230220/230220/230
Nominal AC Frequency (Hz)50/6050/6050/6050/6050/6050/6050/6050/60
Switching Time (ms)SeamlessSeamlessSeamlessSeamlessSeamlessSeamlessSeamlessSeamless
Voltage THD (%)<3<3<3<3<3<3<3<3
Efficiency
CEC Efficiency (%)97.097.097.097.097.097.097.097.0
Max.Efficiency (%)97.697.697.697.697.697.697.697.6
PV to Bat. Efficiency (%)98.198.198.198.198.198.198.198.1
Bat. between AC Efficiency(%)96.896.896.896.896.896.896.896.8
Protection
PV Reverse Polarity ProtectionYesYesYesYesYesYesYesYes
Over Current/Voltage ProtectionYesYesYesYesYesYesYesYes
Anti-Islanding ProtectionYesYesYesYesYesYesYesYes
AC Short Circuit ProtectionYesYesYesYesYesYesYesYes
Residual Current DetectionYesYesYesYesYesYesYesYes
Ground Fault MonitoringYesYesYesYesYesYesYesYes
Insulation Resister DetectionYesYesYesYesYesYesYesYes
PV Arc DetectionYesYesYesYesYesYesYesYes
Enclosure Protect LevelIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4X
AC/DC surge protectionType IIType IIType IIType IIType IIType IIType IIType II
General Data
Dimensions (WxHx D,mm)370x535x192370x535x192370x535x192370x535x192370x535x192370x535x192370x535x192370x535x192
Weight (kg)18.518.518.518.518.518.518.518.5
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
CoolingIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent FanIntelligent Fan
Relative Humidity0-100%0-100%0-100%0-100%0-100%0-100%0-100%0-100%
Operating Temperature Range (℃)-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60
Operating Altitude(m)<4000<4000<4000<4000<4000<4000<4000<4000
Standby Consumption (W)<10<10<10<10<10<10<10<10
Mountingwall Bracketwall Bracketwall Bracketwall BracketWall BracketWall BracketWall BracketWall Bracket
Communication with RSDSUNSPECSUNSPECSUNSPECSUNSPECSUNSPECSUNSPECSUNSPECSUNSPEC
Display & Communication InterfacesLCD,LED,RS485,CAN,Wi-Fi,GPRS,4GLCD,LED,RS485,CAN,Wi-Fi,GPRS,4GLCD,LED,RS485,CAN,Wi-Fi,GPRS,4GLCD,LED,RS485,CAN,Wi-Fi,GPRS,4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD,LED, RS485, CAN, Wi-Fi, GPRS, 4G
Certification & ApprovalsNRS097 G98/G99 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98/G99 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98/G99 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98/G99 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2NRS097 G98 EN50549-1 C10/C11 AS4777.2 VDE-AR-N4105 VDE0126 IEC62109-1 IEC62109-2
EMCEN61000-6-2 EN61000-6-3EN61000-6-2 EN61000-6-3EN61000-6-2 EN61000-6-3EN61000-6-2 EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3
