Opis

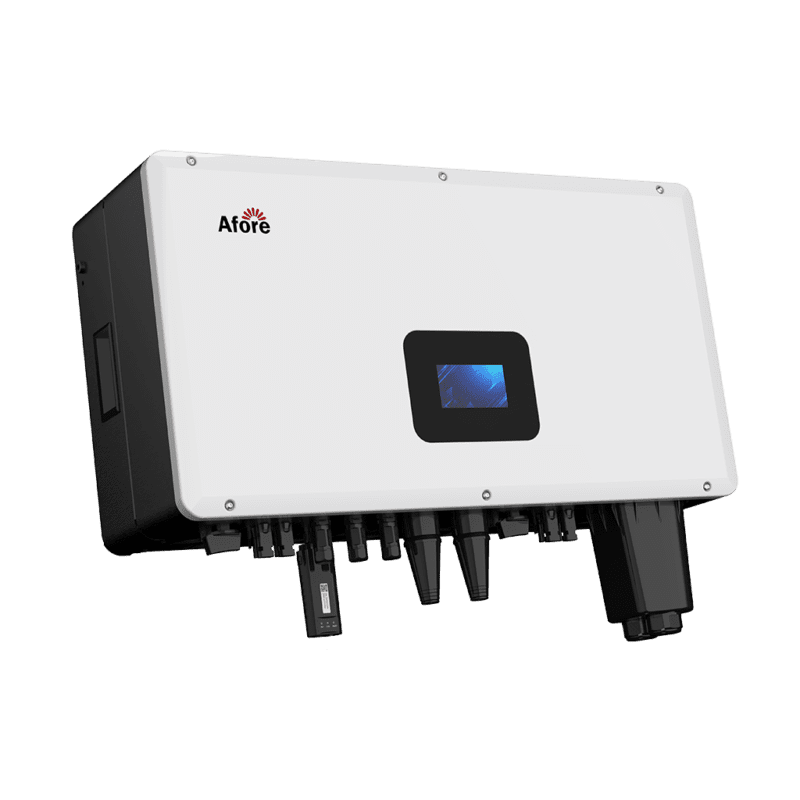

Falowniki jednofazowe Afore serii HNS są przeznaczone do zastosowań w domowych systemach fotowoltaicznych o mocy od 7 kW do 10 kW. Wszystkie modele posiadają aluminiową obudowę typu unibody, która jest anodyzowana, co zwiększa trwałość i skutecznie zapobiega korozji. Wyposażone w zewnętrzne cewki indukcyjne, obudowy unibody mogą zapewnić wydajne rozpraszanie ciepła, co znacznie poprawia niezawodność i wydłuża żywotność falowników.
Menu falownika jest aktywowane za pomocą przycisków dotykowych. Komunikacja odbywa się za pośrednictwem modułu Wi-Fi (można zmienić na Ethernet / GPRS). Status systemu można sprawdzić w dowolnym miejscu i czasie za pośrednictwem portalu internetowego lub aplikacji.
Sprawność MPPT > 99,9%
Konstrukcja z dwoma MPPT
Brak konstrukcji wentylatorów
Wysokiej jakości moc wyjściowa i niskie THDI
Wprowadzenie produktu
| Technical Data | HNS7000TL | HNS8000TL | HNS9000TL | HNS10000TL |
|---|---|---|---|---|
| PV Input Data | ||||
| Max.DC Power(W) | 9800 | 11200 | 12600 | 14000 |
| Max.DC Voltage(V) | 600 | 600 | 600 | 600 |
| MPPT Voltage Range (V) | 70-550 | 70-550 | 70-550 | 70-550 |
| MPPT Full Power VoltageRange(V) | 220-550 | 220-550 | 220-550 | 220-550 |
| Rated Input Voltage(V) | 360 | 360 | 360 | 360 |
| Start-up Voltage(V) | 70 | 70 | 70 | 70 |
| Max.Input Current(A) | 14+26 | 14+26 | 26+26 | 26+26 |
| Max.Short Current(A) | 18+35 | 18+35 | 35+35 | 35+35 |
| No.of MPP Tracker/No.of PV String | 2/3 | 2/3 | 2/4 | 2/4 |
| Input Connector Type | MC4 | MC4 | MC4 | MC4 |
| AC Output Data | ||||
| Max.Output Power(VA) | 7700 | 8800 | 9900 | 11000 |
| Nominal Output Power (W) | 7000 | 8000 | 9000 | 10000 |
| Max Output Curent(A) | 33.6 | 38.3 | 45 | 50 |
| . Nominal Output Voltage(V) | L/N/PE, 220Vac,230Vac,240Vac | L/N/PE, 220Vac,230Vac,240Vac | L/N/PE, 220Vac,230Vac,240Vac | L/N/PE, 220Vac,230Vac,240Vac |
| Grid Voltage Range | 180Vac-276Vac(According to local standard) | 180Vac-276Vac(According to local standard) | 180Vac-276Vac(According to local standard) | 180Vac-276Vac(According to local standard) |
| Nominal Output Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Grid Frequency Range | 45-55Hz/54-66Hz(According to local standard) | 45-55Hz/54-66Hz(According to local standard) | 45-55Hz/54-66Hz(According to local standard) | 45-55Hz/54-66Hz(According to local standard) |
| Output Power Factor | 1 default (adjustable from 0.8 leading to 0.8 lagging) | 1 default (adjustable from 0.8 leading to 0.8 lagging) | 1 default (adjustable from 0.8 leading to 0.8 lagging) | 1 default (adjustable from 0.8 leading to 0.8 lagging) |
| Output Current THD | <3% | <3% | <3% | <3% |
| Efficiency | ||||
| Max.Efficiency | 98.20% | 98.20% | 98.32% | 98.40% |
| Euro Efficiency | 97.95% | 98.00% | 98.00% | 98.10% |
| Protection | ||||
| PV Reverse Polarity Protection | YES | YES | YES | YES |
| PV Insulation Resistance Detection | YES | YES | YES | YES |
| AC Short Circuit Protection | YES | YES | YES | YES |
| AC Over Current Protection | YES | YES | YES | YES |
| AC Over Voltage Protection | YES | YES | YES | YES |
| Anti-Islanding Protection | YES | YES | YES | YES |
| Residual Current Detection | YES | YES | YES | YES |
| Over Temperature Protection | YES | YES | YES | YES |
| Integrated DC switch | YES | YES | YES | YES |
| Surge Protection | Integrated(Type IIl) | Integrated(Type IIl) | Integrated(Type IIl) | Integrated(Type IIl) |
| Smart IV Curve Scaning | YES | YES | YES | YES |
| Quick Arc Fault Circuit interruption | Optional | Optional | Optional | Optional |
| General Data | ||||
| Dimensions (WxHxD,mm) | 370x510x192 | 370x510x192 | 370x535x192 | 370x535x192 |
| Weight(kg) | 17 | 17 | 18 | 18 |
| Protection Degree | IP65 | IP65 | IP65 | IP65 |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Ambient Temperature Range (℃) | -25 to 60 | -25 to 60 | -25 to 60 | -25 to 60 |
| Humidity Range | 0-100% | 0-100% | 0-100% | 0-100% |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless |
| Communication Interface | RS485/WiFi/Wire Ethernet/GPRS(optional) | RS485/WiFi/Wire Ethernet/GPRS(optional) | RS485/WiFi/Wire Ethernet/GPRS(optional) | RS485/WiFi/Wire Ethernet/GPRS(optional) |
| Cooling Concept | Convection | Convection | Intelligent fan cooling | Intelligent fan cooling |
| Night Power Consumption (W) | <1 | <1 | <1 | <1 |
| Max.Operation Altitude(m) | 4000 | 4000 | 4000 | 4000 |
| Certifications and Standards | ||||
| EMC Standard | EN/IEC 61000-6-2,EN/IEC 61000-6-3,EN61000-3-2, EN61000-3-3,EN61000-3-11,EN61000-3-12 | EN/IEC 61000-6-2,EN/IEC 61000-6-3,EN61000-3-2, EN61000-3-3,EN61000-3-11,EN61000-3-12 | EN/IEC 61000-6-2,EN/IEC 61000-6-3,EN61000-3-2, EN61000-3-3,EN61000-3-11,EN61000-3-12 | EN/IEC 61000-6-2,EN/IEC 61000-6-3,EN61000-3-2, EN61000-3-3,EN61000-3-11,EN61000-3-12 |
| Safety Standard | IEC 60068,UL1741, EN62109 | IEC 60068,UL1741, EN62109 | IEC 60068,UL1741, EN62109 | IEC 60068,UL1741, EN62109 |
| Grid-connection | IEEE1547,CSA C22,EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 | IEEE1547,CSA C22,EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 | IEEE1547,CSA C22,EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 | IEEE1547,CSA C22,EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 |
